Description
Specification Details
Brand Black Dog
Product Type Professional Combo PA System
Model Number BD-Combo PA5
System Type Portable Active Entertainment PA Package
Amplifier Model BD-HF-A2000
Speaker Configuration
2× 12″ Full-Range Speakers BD-HF-PS1201
1× 15″ Subwoofer BD-HF-PW1502
Components

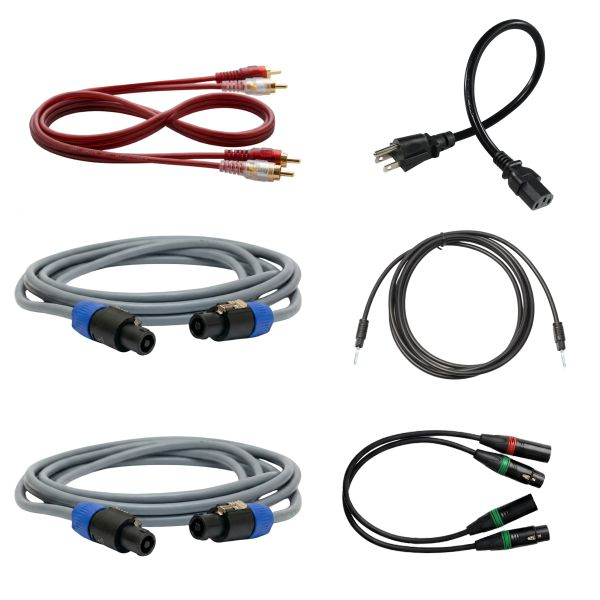

Included: PA Amplifier ×1, Audio Processor ×1, 12″ Passive Speakers ×2, 15″ Passive Subwoofer ×1, Wireless Microphones ×2, SPKON Speaker Wires
Wireless Features Bluetooth Audio Streaming + UHF Wireless Microphones
Application Type DJ, Karaoke, Live Sound, Events, Stage Audio

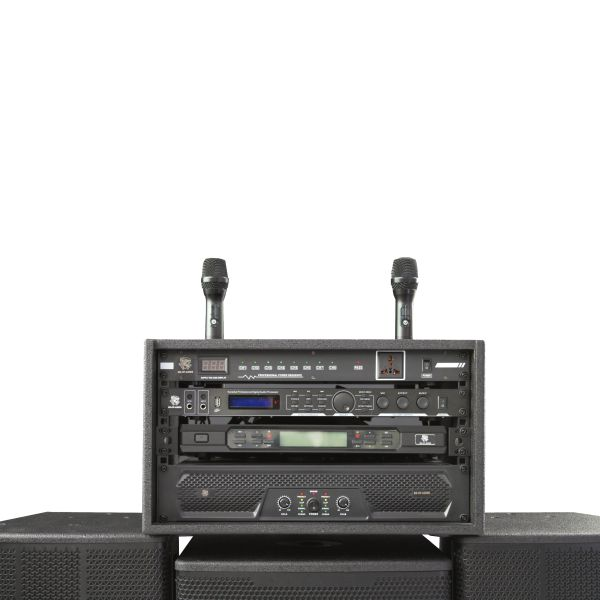

Amplifier Specifications
Specification Details
Amplifier Model BD-HF-A2000
Peak Power Output 4000W
RMS Power Output 2000W
4Ω Stereo Power 2 × 1000W
8Ω Bridged Mono Power 1 × 1600W
Frequency Response 15Hz – 20kHz (±1dB)
Total Harmonic Distortion (THD) <0.1%
Conversion Rate / Slew Rate 28V/μs
Damping Factor >240 (1kHz, 8Ω)
Signal-to-Noise Ratio 110dB
Cooling System Intelligent Fan Cooling
Operating Voltage 110V–220V / 50–60Hz
Dimensions (HxWxD) BD-HF-A2000: 590 × 520 × 380 mm
Weight GW:23kg NW:25kg
Inputs Microphone Inputs, Analog Audio Input, USB Audio Input, Bluetooth
DSP / EQ 32-bit DSP with 7-Band Parametric Equalizer
Control System Real-Time PC Software Control
Notes Designed for stable high-output performance with low distortion and clear sound production
Digital Audio Processor Specifications
Specification Details
DSP Type 32-Bit High-Performance DSP
Equalizer 7-Band Parametric EQ
Audio Filters Qualcomm Digital Filter
Wireless Connectivity Bluetooth Audio Streaming
Audio Inputs Analog Input + USB Audio
Microphone Support Yes
Software Control PC-Based Real-Time Parameter Adjustment
Wireless Microphone Specifications
Specification Details
Microphone Type Dual UHF Wireless Microphone System
Frequency Range 610MHz – 690MHz
Frequency Points 200 Adjustable Channels
Sensitivity 12dBuV (80dB S/N)
Operating Distance Up to 80m
Audio Output Range 0–400
Transmission Type UHF Wireless

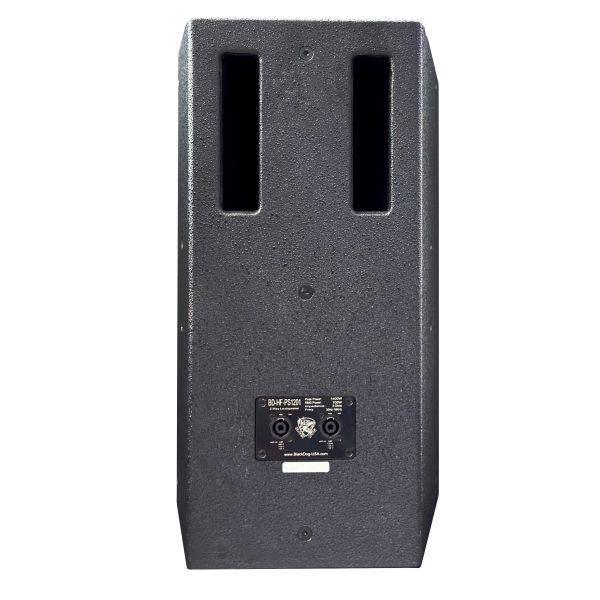

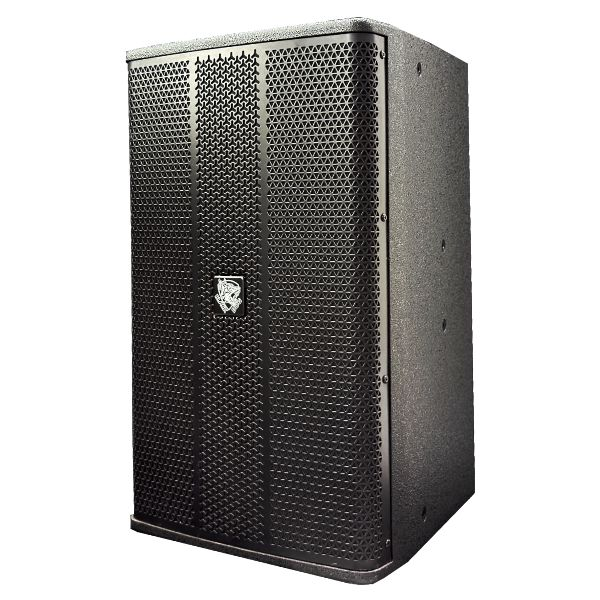

Full-Range Speaker Specifications
Specification Details
Speaker Model BDHF-PS1201
Speaker Type 2-Way Passive Loudspeaker
Woofer Size 12″ Low Frequency Driver
Tweeter Type High-Frequency Compression Driver
Peak Power Handling 1400W
RMS Power Handling 700W
Impedance 8Ω
Frequency Response 35Hz – 18kHz
Cabinet Type Bass Reflex Enclosure
Usage Mid/High Frequency Sound Reinforcement
Dimensions (HxWxD) BD-HF-PS1201: 490 × 450 × 660 mm
Weight GW:19kg NW:21kg

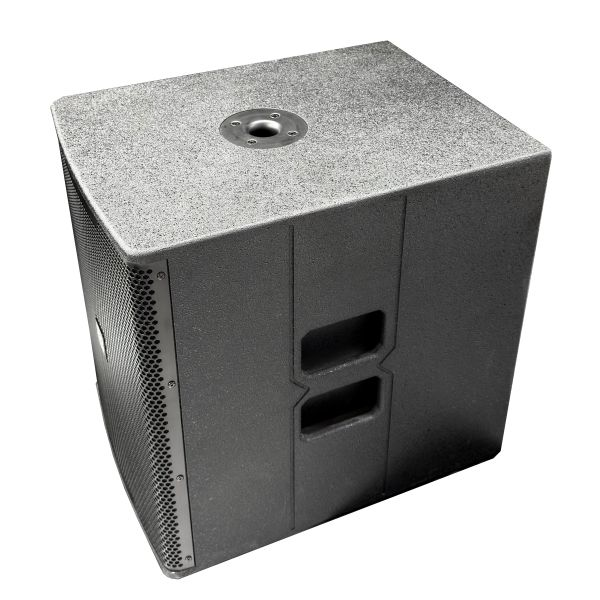

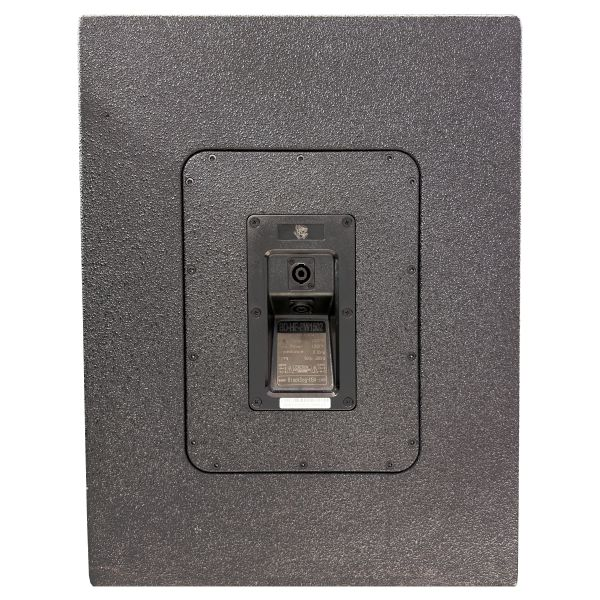

Subwoofer Specifications
Specification Details
Subwoofer Model BDHF-AW1501
Speaker Type Active PA Subwoofer
Driver 15″ LF cone driver, 3″ voice coil
Peak Power Handling 2400W
RMS Power Handling ~1200W continuous
Impedance 4Ω
Frequency Response 38Hz – 200Hz (adjustable crossover)
Sensitivity ~132 dB SPL max
Crossover Adjustable 15Hz–200Hz via rear panel knob
Enclosure Bass‑reflex, front‑ported MDF cabinet
Connectivity RCA stereo inputs/outputs, XLR input, stereo loop outputs
Controls Volume knob, crossover frequency knob, DSP EQ modes (Live, DJ, Flat)
Protection Thermal, clip, overload, transducer overdrive
Dimensions (HxWxD) BD-HF-PW1502: 640 × 510 × 620 mm
Weight GW:27kg NW:30kg
Key Features
- 4000W Peak Power Output delivering powerful and dynamic sound performance
- Professional BD-HF-A2000 Amplifier engineered for stable high-output operation
- Advanced 32-Bit DSP Processing for precise audio tuning and sound optimization
- 7-Band Parametric Equalizer allowing detailed vocal and music adjustment
- Bluetooth Audio Streaming for convenient wireless music playback
- USB & Analog Audio Inputs supporting multiple audio source connections
- Dual UHF Wireless Microphones Included ideal for karaoke, MCs, speeches, and live vocals
- 200 Adjustable Wireless Channels providing stable and interference-resistant microphone performance
- 12″ Full-Range Passive Speakers delivering clear mids, detailed highs, and balanced coverage
- Dedicated 15″ Ultra-Low Subwoofer producing deep and powerful bass response
- Bass Reflex Speaker Cabinet Design enhancing low-frequency efficiency and projection
- Real-Time DSP Software Control for professional sound customization through PC connectivity
- Low Distortion Amplification (<0.1% THD) ensuring clean and accurate audio reproduction
- High Signal-to-Noise Ratio (110dB) for reduced background noise and improved clarity
- Intelligent Fan Cooling System maintaining stable performance during extended operation
- Professional Protection Systems including thermal, overload, and transducer protection
- Portable Plug-and-Play Setup suitable for mobile DJs, live events, and entertainment venues
- Reliable Indoor & Outdoor Performance designed for versatile event and stage applications
Summary

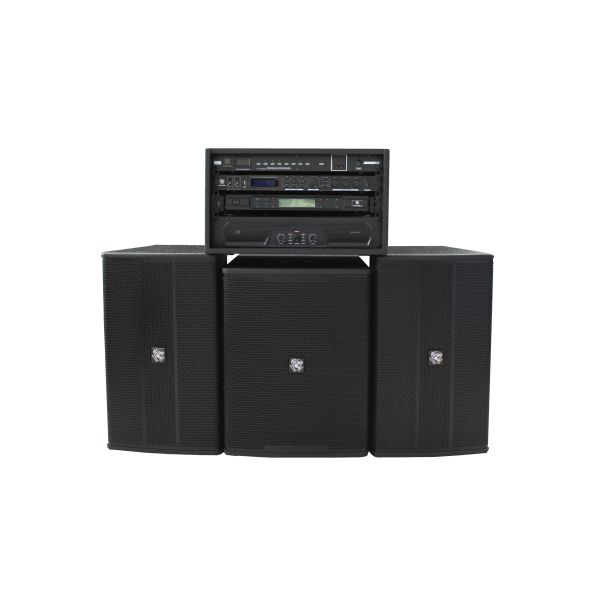

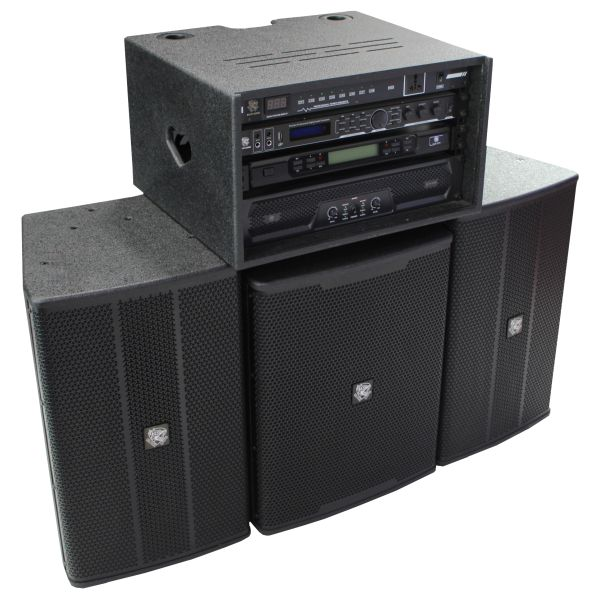

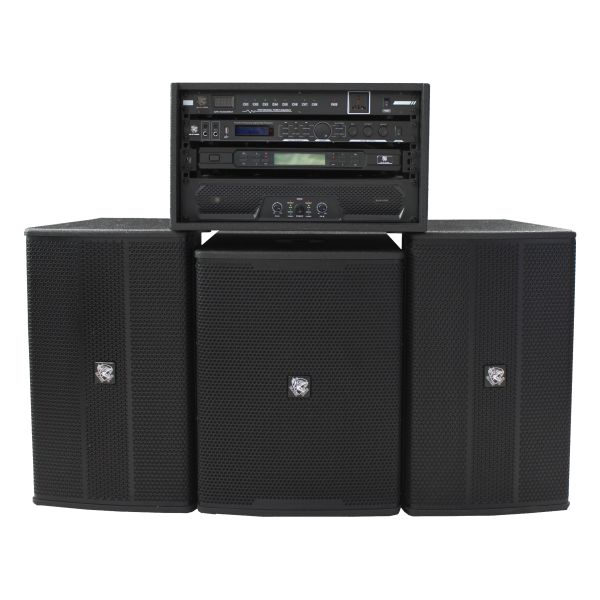

The Black Dog BD-Combo PA5 is a versatile professional PA solution engineered for users who need powerful sound, deep bass performance, and flexible connectivity in one complete package. Combining a high-output amplifier, advanced DSP processing, full-range loudspeakers, and a dedicated subwoofer, the PA5 delivers balanced audio suitable for music playback, vocals, and live sound applications. Its Bluetooth functionality, wireless microphones, and portable design make it an ideal choice for DJs, entertainers, churches, event organizers, and anyone seeking a reliable plug-and-play PA system for professional use.
