Description
Specification Details
Brand Black Dog
Product Type Professional Portable PA System
Model Number BD-Combo PA6
Amplifier Model BD-HF-A5200
System Type Live Sound Reinforcement System
Speaker Configuration 2 × 12″ Passive Loudspeakers + 2 × 15″ Passive Subwoofers
Components
PA Amplifier
Audio Processor
Wireless Microphones
Full-Range Speakers
Subwoofers

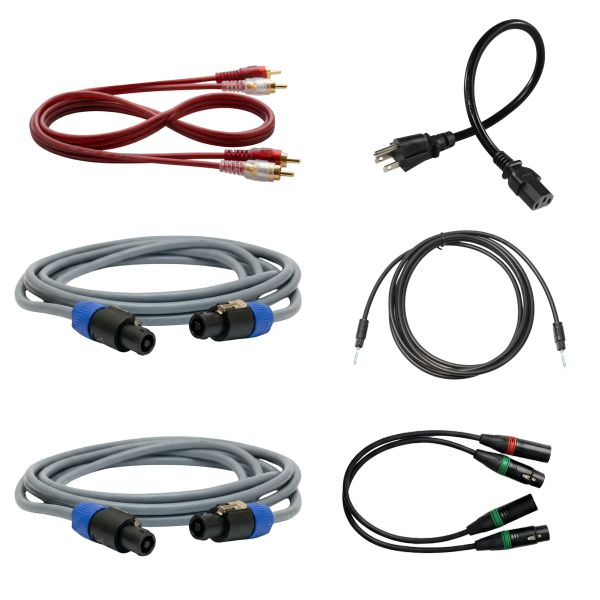

SPKON Speaker Wire

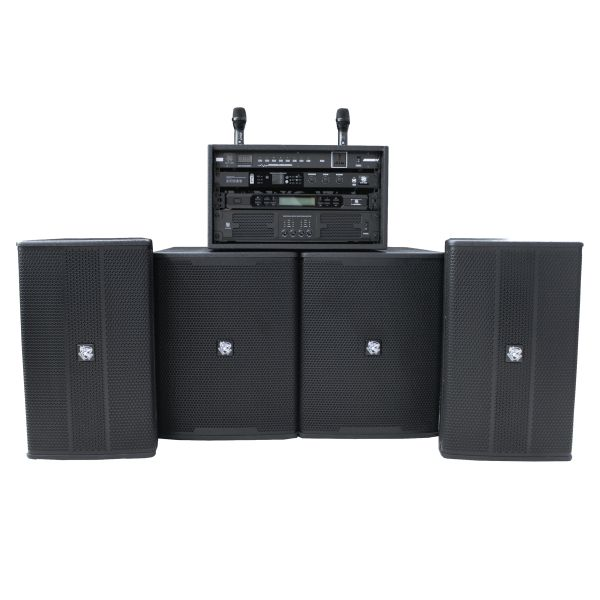

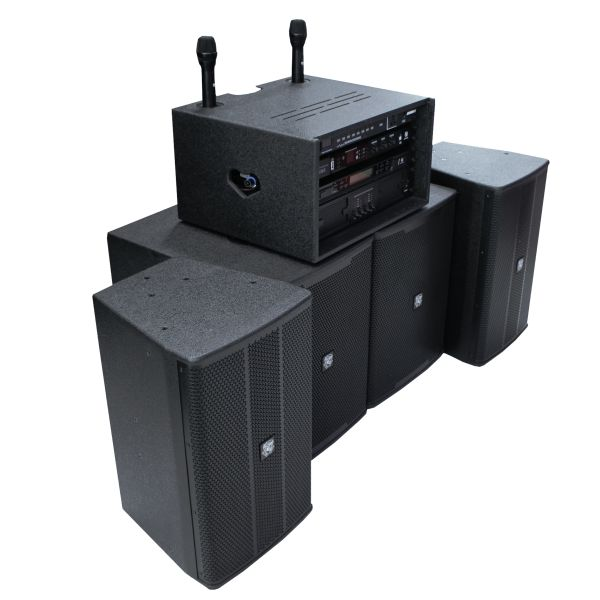

Included in Package PA Digital Amplifier ×1, Audio Processor ×1, 12″ Passive PA Speakers ×2, 15″ Passive PA Subwoofers ×2, Wireless Microphones ×2, SPKON Wire
Wireless Features Bluetooth Audio Streaming + Dual Wireless Microphones
Primary Applications DJ Systems, Karaoke, Live Events, Stage Audio, Church Sound
Amplifier Specifications
Specification Details
Amplifier Model BD-HF-A5200
Peak Power Output 10400W
RMS Power Output 5200W
4Ω Power Output 4 × 1300W
2Ω Bridged Power 2 × 1900W
Frequency Response 20Hz–20kHz (±1dB)
Total Harmonic Distortion (THD) <0.5%
Conversion Rate / Slew Rate 28V/μs
Damping Factor >700 (1kHz, 8Ω)
Signal-to-Noise Ratio 98dB
Amplifier Type High-Efficiency Professional Power Amplifier
Cooling System Intelligent Fan Cooling
Operating Voltage 110V–220V / 50–60Hz
Audio Inputs Analog Audio Input, USB Audio Input, Microphone Inputs, Bluetooth
DSP / EQ 32-bit DSP with 7-Band Parametric Equalizer
Control System PC Software Real-Time Audio Adjustment
Dimensions (HxWxD) BD-HF-A5200: 490 × 450 × 660 mm
Weight GW:19kg NW:21kg
Notes Designed for stable high-power operation with strong bass response and clear vocal performance
Digital Audio Processor Specifications
Specification Details
DSP Type 32-bit High-Performance DSP
Equalizer 7-Band Parametric EQ
Audio Filters Qualcomm Digital Filter
Wireless Connectivity Bluetooth Audio Streaming
Audio Inputs Analog Audio + USB Audio
Microphone Support Yes
Software Control Real-Time PC Software Parameter Control

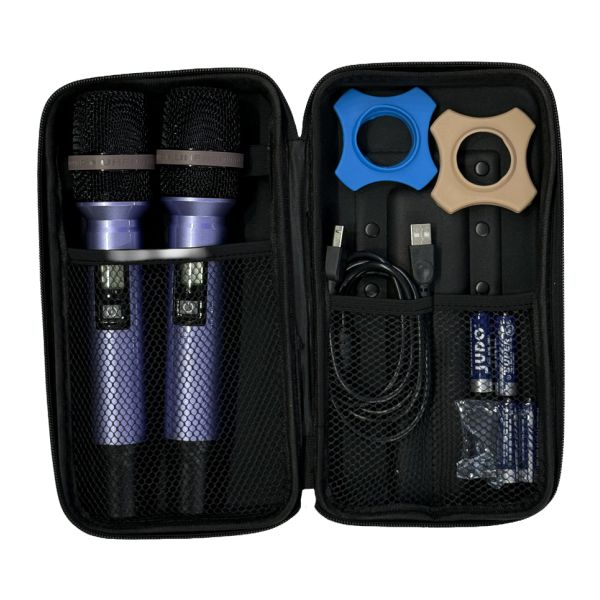

Wireless Microphone Specifications
Specification Details
Microphone Type Dual UHF Wireless Microphone System
Frequency Range 610MHz – 690MHz
Adjustable Frequency Channels 200 Frequency Points
Sensitivity 12dBuV (80dB S/N)
Maximum Operating Distance Up to 80m
Audio Output Range 0–400
Transmission Type UHF Wireless

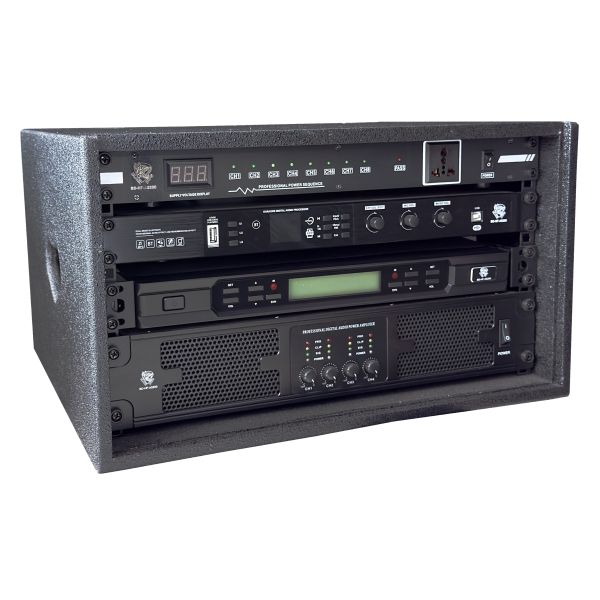

Power Sequence Specifications
Specification Details
Number of Sockets 9 Sockets
Maximum Input Current 30A
Maximum Output Current 16A
Operating Voltage 110V–220V / 50–60Hz
Application Professional Equipment Power Distribution & Protection
Full-Range Speaker Specifications
Specification Details
Speaker Model BDHF-PS1201
Speaker Type 2-Way Passive Loudspeaker
Woofer Size 12″ Low Frequency Driver
Tweeter Type High Frequency Compression Driver
Peak Power Handling 1400W
RMS Power Handling 700W
Impedance 8 Ohms
Frequency Response 35Hz – 18kHz
Cabinet Design Bass Reflex Enclosure
Application Mid/High Frequency Live Sound Reinforcement
Dimensions (HxWxD) BD-HF-PS1201: 490 × 450 × 660 mm
Weight GW:19kg NW:21kg

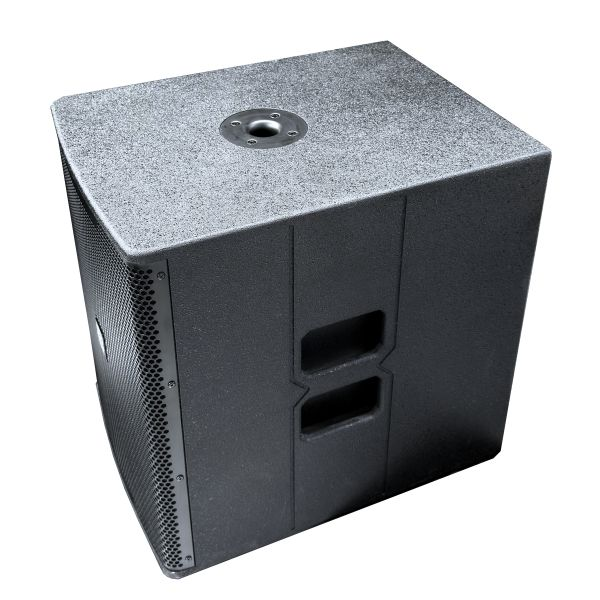

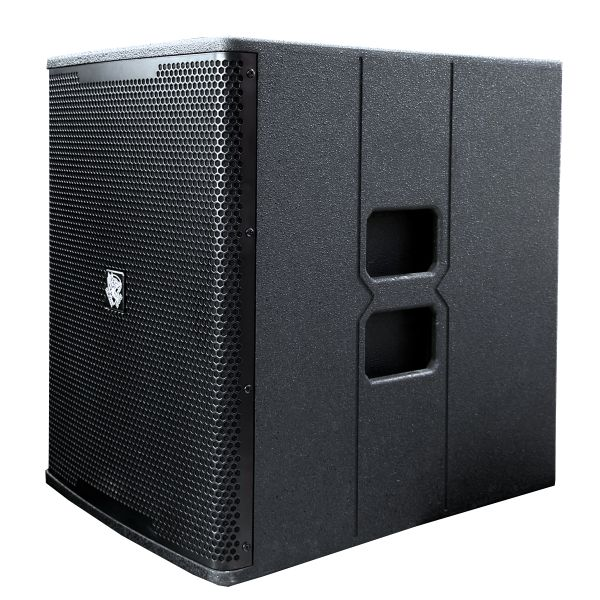

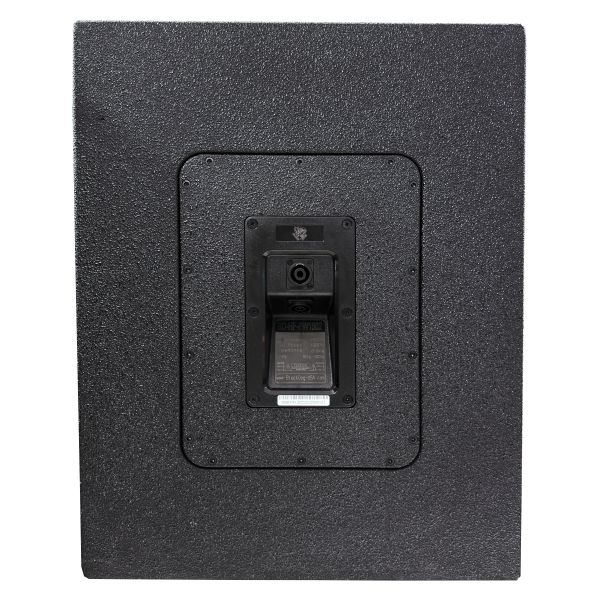

Subwoofer Specifications
Specification Details
Subwoofer Model BDHF-PW1502
Speaker Type Ultra Low Passive Subwoofer
Woofer Size 15″ High-Power Bass Driver
Peak Power Handling 2400W
RMS Power Handling 1200W
Impedance 8 Ohms
Frequency Response 50Hz – 300Hz
Cabinet Design Heavy-Duty Bass Reflex
Application Deep Bass Reinforcement
Dimensions (HxWxD) BD-HF-PW1502: 640 × 510 × 620 mm
Weight GW:24kg NW:27kg
Key Features
- 10400W Peak Output Power for powerful sound coverage and high SPL performance
- Professional 32-bit DSP Processing with advanced sound tuning capability
- Dual 15″ Passive Subwoofers delivering enhanced low-frequency bass response
- Bluetooth Audio Streaming for wireless music playback
- Dual UHF Wireless Microphones Included for karaoke and live vocals
- 7-Band Parametric Equalizer for precise sound adjustment
- USB & Analog Audio Connectivity for flexible audio source integration
- Heavy-Duty Full-Range Speakers designed for live sound reinforcement
- Professional Power Sequencer for stable and protected system operation
- Portable Plug-and-Play Design ideal for mobile entertainment systems
Summary

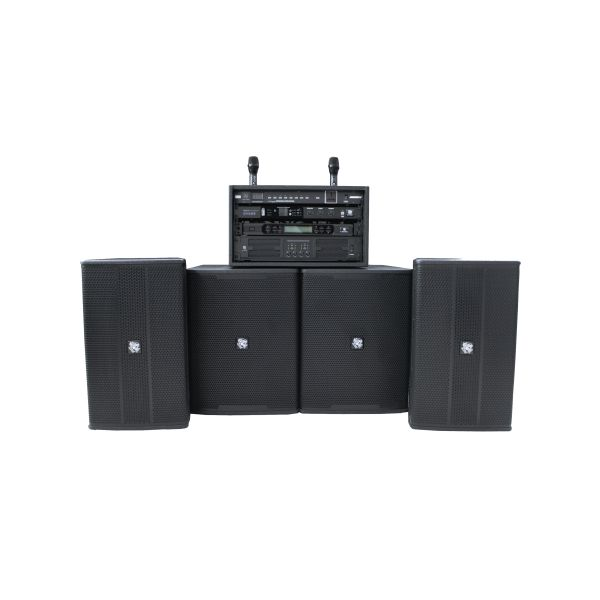

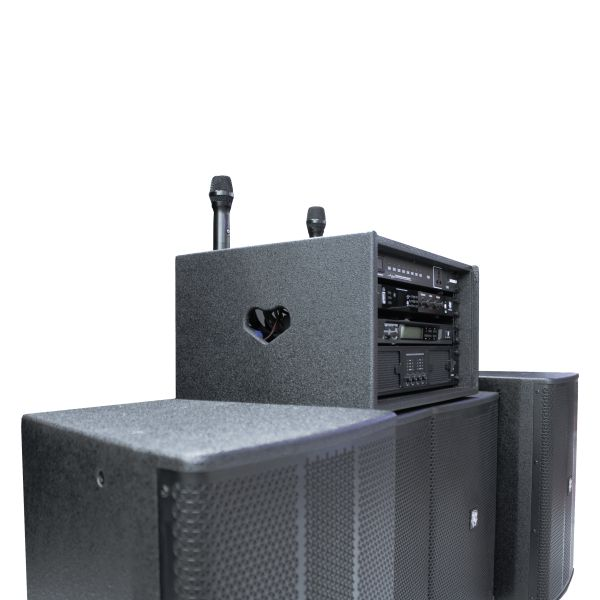

The Black Dog BD-Combo PA6 is a complete high-performance PA solution built for users who require strong bass response, reliable wireless functionality, and professional-grade sound reinforcement in a portable system. Combining the BD-HF-A5200 amplifier, advanced DSP processing, dual 12″ full-range speakers, and dedicated 15″ passive subwoofers, the PA6 delivers balanced audio with excellent vocal clarity and powerful low-end performance. Inspired by modern professional PA system designs used in live entertainment and commercial audio environments, the BD-Combo PA6 offers a dependable and versatile solution for DJs, entertainers, churches, and event professionals.
