Description
General Information
Specification Detail
Brand Black Dog
Product Type Combo PA System (Amplifier + Speakers)
Model Number BD-Combo PA8

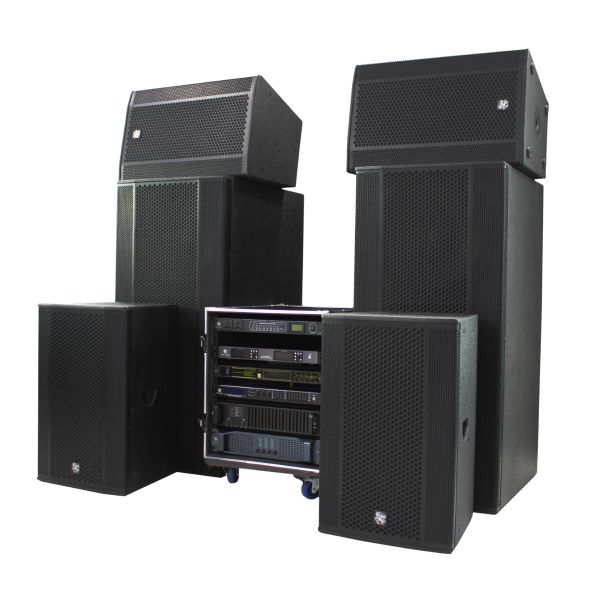

Components
1× BD-HF-A17600 Amplifier

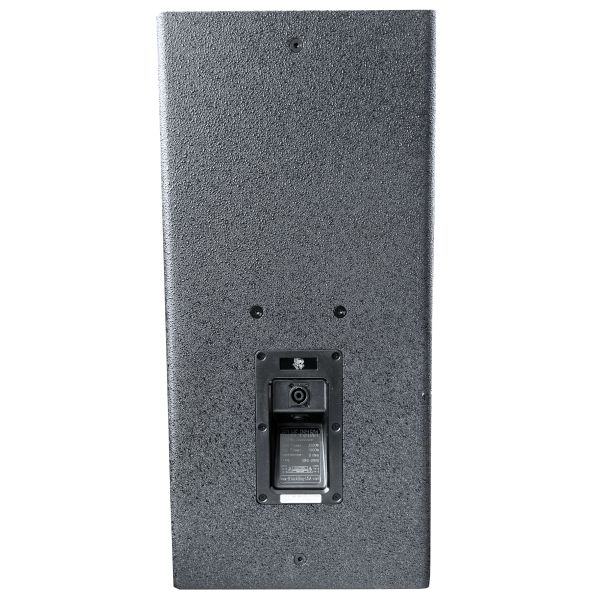

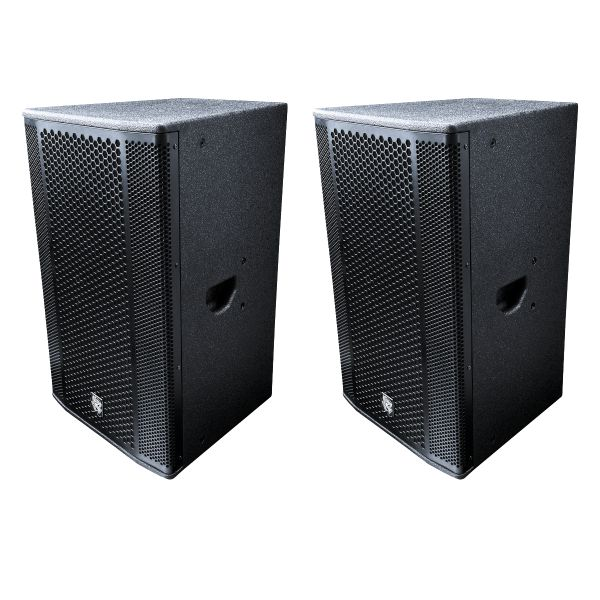

2× BD-HF-PS1501 15″ Passive 2-way speakers (8 Ω)

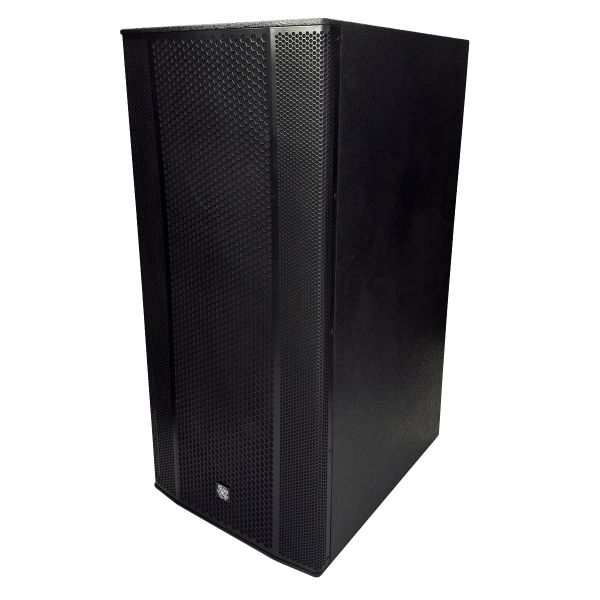

2× BD-HF-PW1802 15″ Passive subwoofers (4 Ω)
2× UHF Wireless Mics
1× 9-outlet Power Sequencer

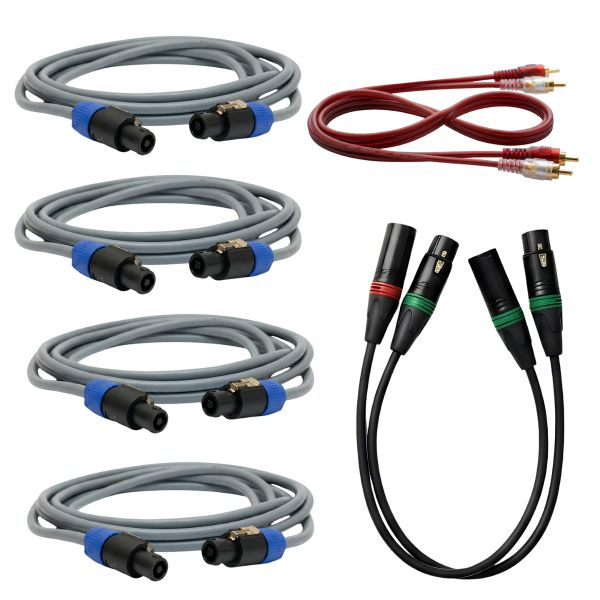

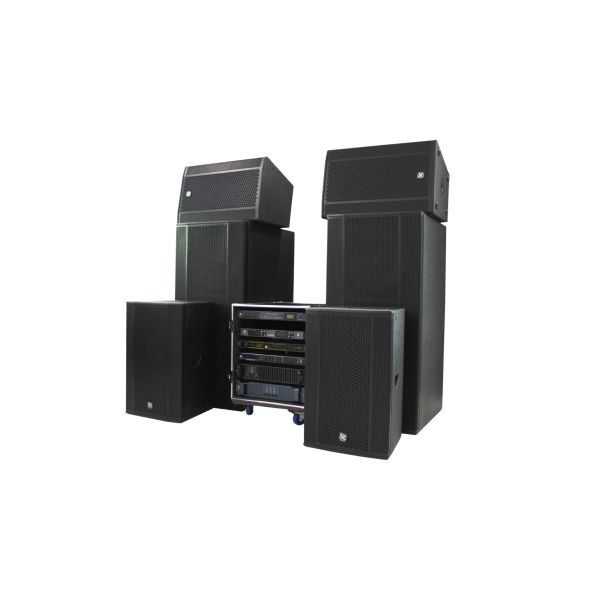

Included: Amplifier unit, pair of full-range speakers, pair of subwoofers, 2 wireless mics, power sequencer, speaker cables (Speakon)
Wireless Yes – Bluetooth audio streaming; 2× UHF wireless microphone receivers

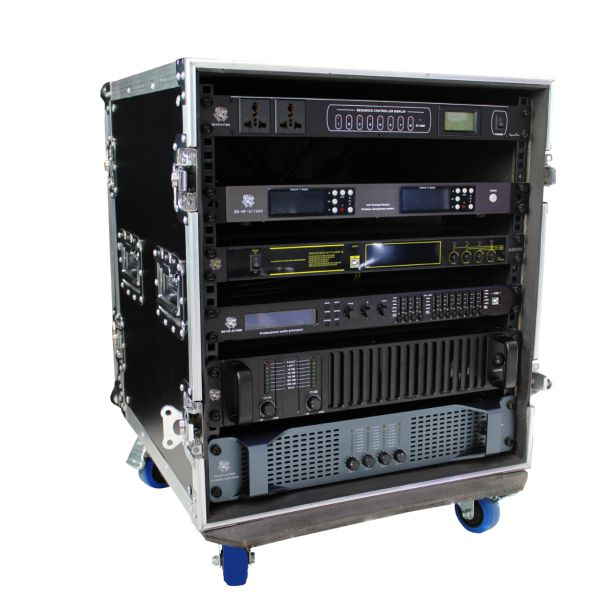

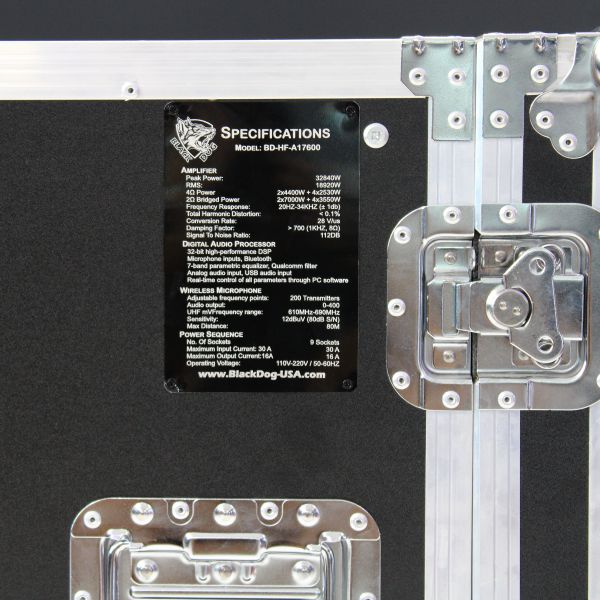

Component 1 Specifications (Amplifier)
Specification Details
Peak Power Output 32,840 W
RMS Power Output 18,920 W
4Ω Power (per channel) 2× 7,000 W + 4× 3,550 W
2Ω Bridged Power 2× 7,000 W + 4× 3,550 W
Frequency Response 20 Hz – 34 kHz (±1 dB)
Total Harmonic Distortion < 0.1%
Slew Rate (Conversion) 28 V/μs
Damping Factor (1 kHz, 8Ω) > 700
Signal-to-Noise Ratio 112 dB
Component 1.1 Specifications (Digital audio processor)
Specification Details
32-bit high-performance DSP
Microphone inputs, Bluetooth
7-band parametric equalizer, Qualcomm filter
Analog audio input, USB audio input
Real-time control of all parameters through PC software

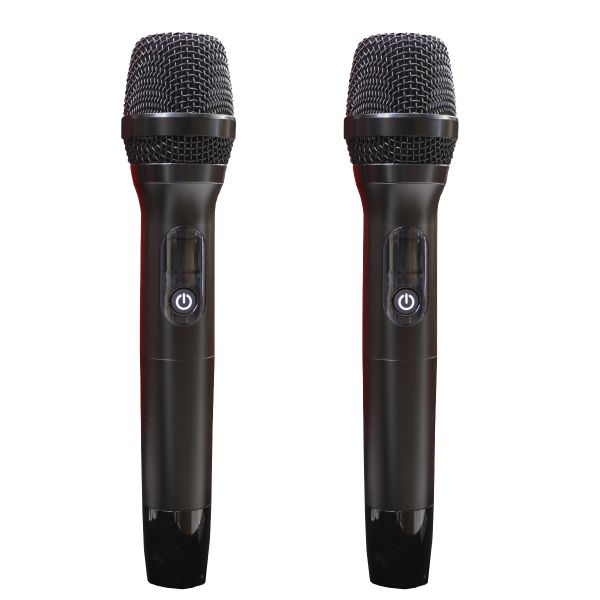

Component 1.2 Specifications (Wireless microphone)
Specification Details
Adjustable frequency points 200 transmitters
Audio output: 0–400
UHF mV Frequency range 610MHz–690MHz
Sensitivity 12dBuV (80dB S/N)
Max Distance 80m
Component 1.3 Specifications (Power sequence)
Specification Details
No. of Sockets 9 sockets
Maximum Input Current 30A
Maximum Output Current 16A
Operating Voltage 110V–220V / 50–60Hz
Dimensions (H×W×D) Approx. 1000×450×450 mm
Weight ~50 kg each
Inputs Multiple XLR/TRS mic & line inputs, RCA, USB audio, Bluetooth
DSP / EQ 32-bit DSP with 7-band parametric EQ, Qualcomm filters, PC software control
Cooling Active fan cooling with heat sinks
Operating Voltage 110–220 V AC, 50–60 Hz
Notes Efficient Class-D design supports massive output; Designed for sustained professional use.
Component 2 Specifications (Speakers)
Specification Details
Speaker Type Passive 2-way (18″ LF + 1″ HF driver) / Passive 18″ Subwoofer
Woofer 15″ (381 mm) LF cone
Tweeter1″ (25 mm) HF compression driver (top speakers) / – (subwoofer)
Peak Power Handling 6400 W (each full-range speaker) / 6,400 W (each subwoofer)
RMS Power Handling 1,600 W (each full-range speaker) / 3,200 W (each subwoofer)
Impedance 8 Ω (full-range speakers) / 4 Ω (subwoofers)
Frequency Response 50 Hz – 20 kHz (top speakers) / 33 Hz – 300 Hz (subwoofers)
Sensitivity ~98 dB (1 W/1 m) each
Crossover 2.5 kHz (internal passive network)
Enclosure Bass-reflex (ported) for both top and sub units
Dimensions (H×W×D) BD-HF-PS1501: 560 × 530 × 770 mm
Weight NW: 34kg GW: 38kg

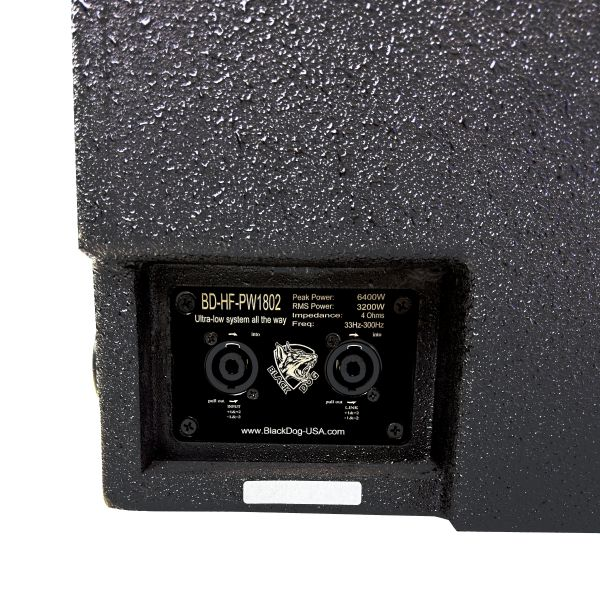

Dimensions (H×W×D) BD-HF-PW1802: 810 × 660 × 1290 mm
Weight NW: 76kg GW: 83kg
Key Features
- Extreme Power Output: Delivers up to 32.8 kW peak (18.9 kW RMS), capable of driving large sound systems with headroom to spare.
- Ultra-Wide Frequency Range: Spans 20 Hz to 34 kHz, ensuring smooth lows and crisp highs – essential for full-spectrum sound.
- Integrated DSP & 7-Band EQ: Built-in 32-bit digital signal processor lets you fine-tune the sound (parametric EQ, filters) in real time with a PC interface.
- Bluetooth Audio Streaming: Play tracks wirelessly from any device. Bluetooth connectivity “adds another layer of convenience” for modern setups.
- Versatile Input Options: Supports XLR/TRS mic inputs, RCA line-in, USB audio and more – just like a pro PA should.
- Rugged Road-Ready Design: Heavy-duty cabinets and a robust build stand up to tough touring conditions (a true “go-to companion” for gigs).
- Complete 2-Way System: Includes both full-range and subwoofer speakers for a powerful, balanced output. Large 15″ drivers produce the deep bass and coverage needed for DJ/music events.
- Plug-and-Play Operation: Everything comes pre-matched and ready – just connect sources and mic, and you’re ready to rock (modern portable PAs like this emphasize ease of use).
Summary
The Black Dog Combo PA8 is a top-tier all-in-one PA solution. By combining an extremely powerful multi-channel amplifier with matched speakers and flexible DSP, it delivers performance on par with the best portable systems. In fact, audio experts note that 15″ speaker systems in this power class are well-suited for very large events
and that festival setups often use 2000W+ rigs. Matching exactly what the Combo PA8 offers. This complete package gives professionals the volume, control, and reliability needed for the biggest shows, along with modern conveniences like Bluetooth streaming. It’s built to industry standards and beyond, providing a hassle-free, plug-and-play experience at any gig.
