Description
Specification Details
Brand Black Dog
Product Type DSP Portable PA System
Model Number BD-Combo PA2
Amplifier Model BD-HF-A0500
System Type Portable Sound Reinforcement System
Speaker Configuration 2 × 10″ Passive Loudspeakers
Included Components DSP Amplifier, Passive Speakers, Wireless Microphones, SPKON Wire
Included in Package PA Digital Amplifier ×1, 10″ Passive Speakers ×2, Wireless Microphones ×2, SPKON Speaker Wire
Wireless Features Bluetooth Audio Streaming + Wireless Microphones
Mounting Type Rack/Desktop Amplifier Configuration
Primary Applications Karaoke, Live Sound, Presentations, Portable Entertainment
Amplifier Specifications
Specification Details

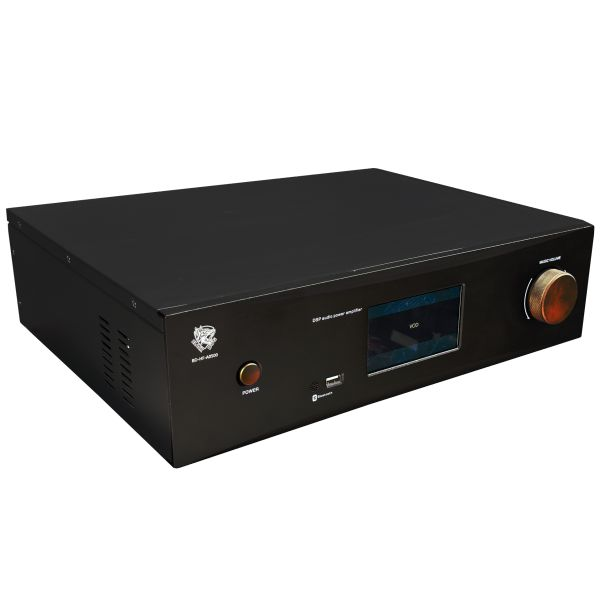

Amplifier Model BD-HF-A0500
Peak Power Output 1000W Total
RMS Power Output 600W Total
8Ω Output Power 4 × 150W
4Ω Output Power 4 × 150W
Bridged Output 2 × 300W (8Ω / 4Ω / 70V / 100V)
Frequency Response 20Hz–20kHz (±0.25dB), 4Hz–40kHz (–3dB)
Total Harmonic Distortion (THD) <0.008%
Dynamic Range 103dBA
Input Sensitivity –10dBV, +4dBu, +12dBu, +28dBu
Input Impedance 10kΩ Unbalanced / 20kΩ Balanced
Latency <350μs
Amplifier Technology High-Efficiency Class-D
DSP Processing 32-bit / 96kHz FIR & IIR Filters
Cooling System Fan-Forced Intelligent Cooling
Protection Features Thermal, Overload & Short-Circuit Protection
Control Interface RJ45 Network Control, GPIO, TFT Front Display
Expansion Support Optional Dante™ / AES67 Expansion
Dimensions (HxWxD) BD-HF-A0500: 430 × 540 × 230 mm
Weight GW:14kg NW:16kg
DSP & Audio Processing Features
Specification Details
DSP Type 32-bit / 96kHz DSP Processor
Equalization FIR / IIR Digital Filters
Speaker Management Peak & RMS Limiters
Delay Processing Integrated DSP Delay
Display Type Front TFT Display
Control Method Rotary Encoder + Network Control
Networking Support RJ45 Ethernet Integration

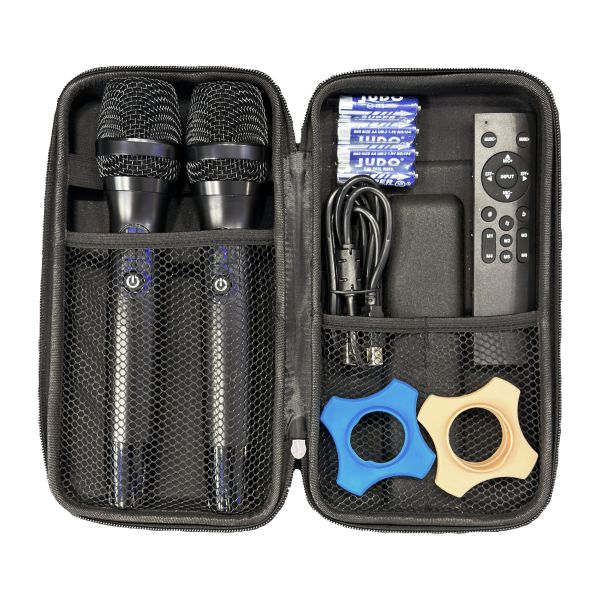

Wireless Microphone Specifications
Specification Details
Microphone Type Dual Wireless UHF Microphones
Transmission Type UHF Wireless
Application Karaoke, Speech, Live Vocals
Operating Performance Stable Long-Range Signal Reception
Included Quantity 2 Wireless Microphones
Speaker Specifications
Specification Details

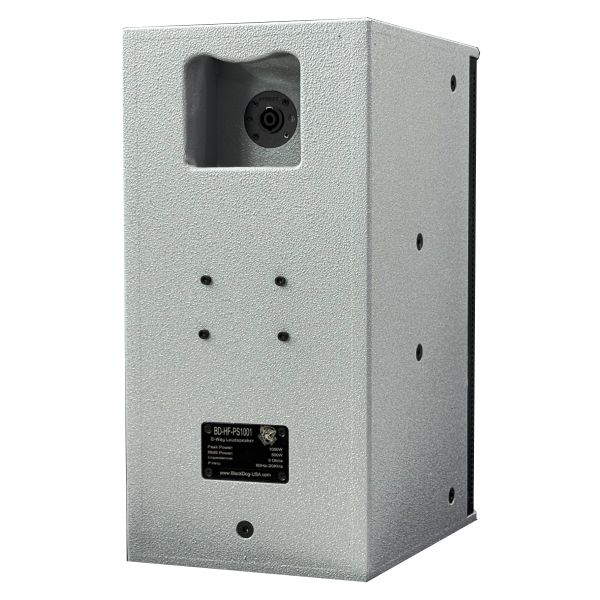

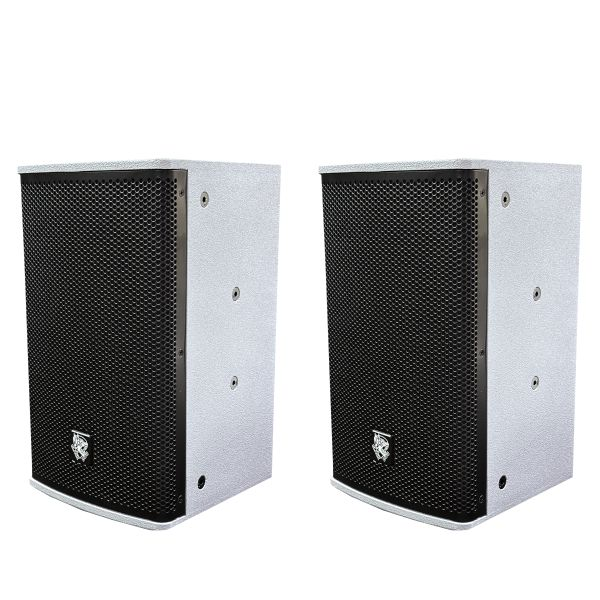

Speaker Model BD-HF-PS1001
Speaker Type 2-Way Passive Loudspeaker
Woofer Size 10″ Low Frequency Driver
Tweeter Type High Frequency Compression Driver
Peak Power Handling 1000W
RMS Power Handling 500W
Impedance 8 Ohms
Frequency Response 60Hz – 20kHz
Cabinet Design Bass Reflex Enclosure
Speaker Configuration Full-Range Sound Reinforcement
Application Mid/High Frequency Audio Playback
Dimensions (HxWxD) BD-HF-PS1001: 670 × 370 × 550 mm
Weight GW:26kg NW:29kg
Key Features
- 1000W Peak Power Output for clear and powerful sound performance
- High-Efficiency Class-D Amplification with ultra-low distortion
- Advanced DSP Audio Processing with FIR/IIR digital filtering
- Bluetooth Audio Streaming for wireless music playback
- Front TFT Display & Rotary Control for simple system adjustment
- RJ45 Network Integration for advanced control capability
- Dual Wireless Microphones Included for karaoke and live vocals
- Professional 10″ Full-Range Speakers delivering balanced sound response
- Comprehensive Protection Circuits for reliable operation
- Compact Portable Design ideal for mobile entertainment systems
Summary
The Black Dog BD-Combo PA2 delivers professional sound performance in a compact and portable package designed for everyday entertainment and commercial audio applications. Combining DSP-powered amplification, reliable wireless microphone performance, and efficient 10″ loudspeakers, the PA2 offers clean vocals, balanced music playback, and dependable operation for a wide range of environments. Its modern DSP features, Bluetooth connectivity, and user-friendly setup make it an ideal solution for karaoke systems, small venues, portable events, and professional AV applications.
