Description
Specification Details
Brand Black Dog
Product Type Professional Portable PA System
Model Number BD-Combo PA3
Amplifier Model BD-HF-A2000
System Type Portable Sound Reinforcement System
Speaker Configuration 2 × 12″ Passive Loudspeakers
Components
PA Amplifier
DSP Audio Processor
Wireless Microphones
Passive Speakers

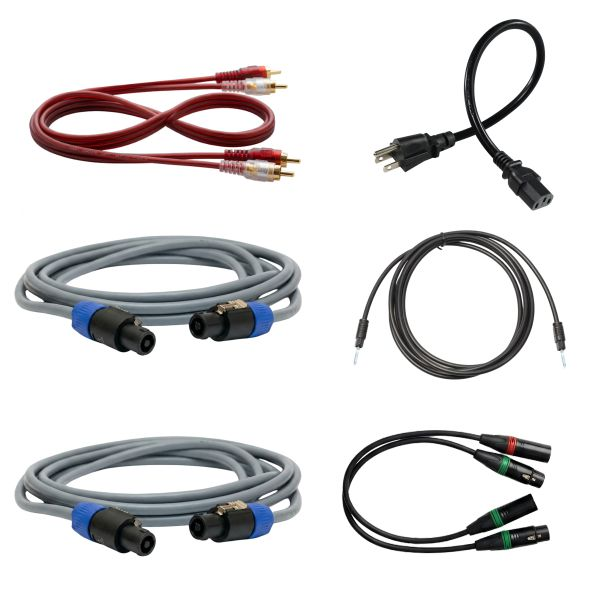

SPKON Speaker Wire
Included in Package PA Digital Amplifier ×1, Audio Processor ×1, 12″ Passive PA Speakers ×2, Wireless Microphones ×2, SPKON Wire
Wireless Features Bluetooth Audio Streaming + Dual Wireless Microphones
Application Type Karaoke, Live Sound, DJ Systems, Portable Entertainment

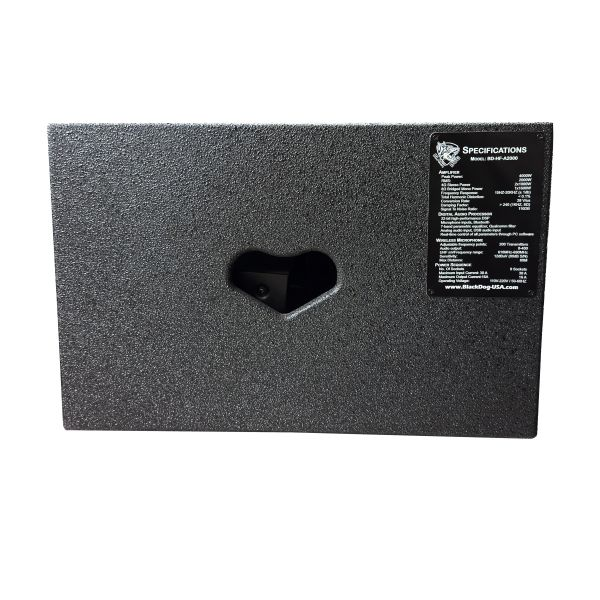

Amplifier Specifications
Specification Details
Amplifier Model BD-HF-A2000
Peak Power Output 4000W
RMS Power Output 2000W
4Ω Stereo Power 2 × 1000W
8Ω Bridged Mono Power 1 × 1600W
Frequency Response 15Hz–20kHz (±1dB)
Total Harmonic Distortion (THD) <0.1%
Conversion Rate / Slew Rate 28V/μs
Damping Factor >240 (1kHz, 8Ω)
Signal-to-Noise Ratio 110dB
Amplifier Type High-Efficiency Professional Power Amplifier
Cooling System Intelligent Fan Cooling
Operating Voltage 110V–220V / 50–60Hz
Audio Inputs Analog Audio Input, USB Audio Input, Microphone Inputs, Bluetooth
DSP / EQ 32-bit DSP with 7-Band Parametric Equalizer
Control System PC Software Real-Time Parameter Adjustment
Dimensions (HxWxD) BD-HF-A2000: 590 × 520 × 380 mm
Weight GW:23kg NW:25kg
Digital Audio Processor Specifications
Specification Details
DSP Type 32-bit High-Performance DSP
Equalizer 7-Band Parametric EQ
Audio Filters Qualcomm Digital Filter
Wireless Connectivity Bluetooth Audio Streaming
Audio Inputs Analog Input + USB Audio
Microphone Support Yes
Software Control Real-Time PC Software Adjustment
Wireless Microphone Specifications
Specification Details
Microphone Type Dual UHF Wireless Microphone System
Frequency Range 610MHz – 690MHz
Adjustable Channels 200 Frequency Points
Sensitivity 12dBuV (80dB S/N)
Maximum Operating Distance Up to 80m
Audio Output Range 0–400
Transmission Type UHF Wireless

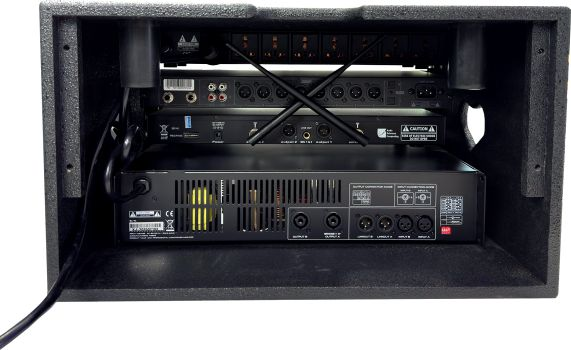

Power Sequence Specifications
Specification Details
Number of Sockets 9 Sockets
Maximum Input Current 30A
Maximum Output Current 16A
Operating Voltage 110V–220V / 50–60Hz
Application Professional Power Distribution & Equipment Protection

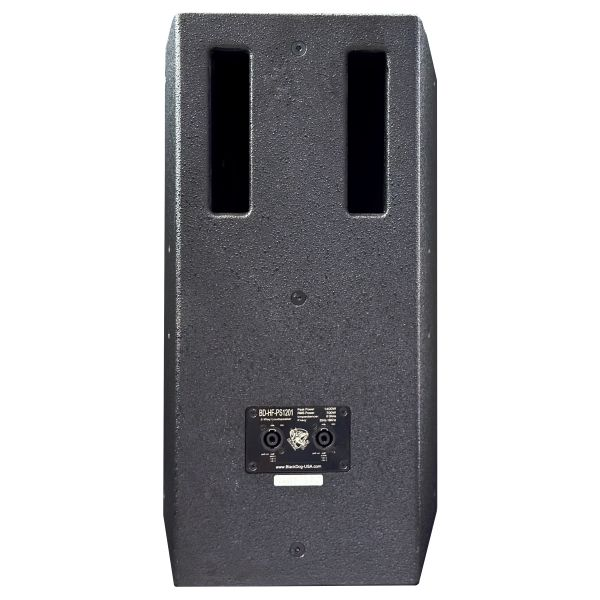

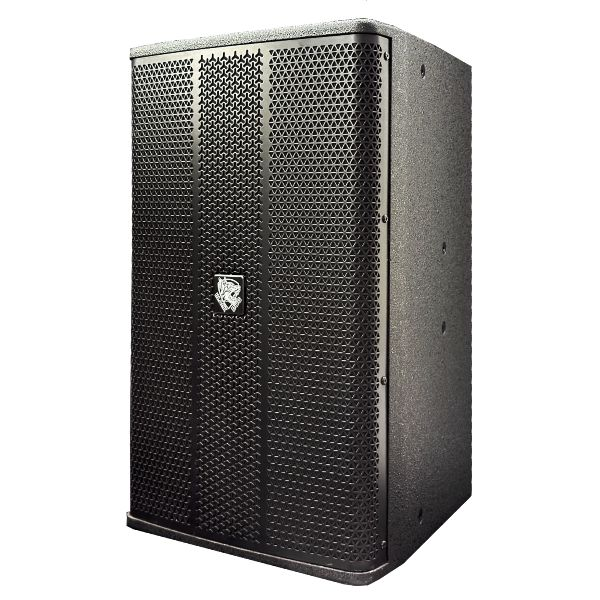

Speaker Specifications
Specification Details
Speaker Model BDHF-PS1201
Speaker Type 2-Way Passive Loudspeaker
Woofer Size 12″ Low Frequency Driver
Tweeter Type High Frequency Compression Driver
Peak Power Handling 1400W
RMS Power Handling 700W
Impedance 8 Ohms
Frequency Response 35Hz – 18kHz
Cabinet Design Bass Reflex Enclosure
Speaker Configuration Full-Range Sound Reinforcement
Application Mid/High Frequency Live Audio Playback
Dimensions (HxWxD) BD-HF-PS1201: 490 × 450 × 660 mm
Weight GW:19kg NW:21kg
Key Features
- 4000W Peak Output Power for strong and dynamic sound performance
- Professional 32-bit DSP Processing with advanced sound tuning capabilities
- Bluetooth Audio Streaming for convenient wireless music playback
- Dual UHF Wireless Microphones Included for karaoke and live vocals
- 7-Band Parametric Equalizer for precise audio adjustment
- USB & Analog Audio Connectivity for flexible source integration
- Low Distortion Amplification delivering clean and detailed sound
- Heavy-Duty 12″ Full-Range Speakers with balanced frequency response
- Professional Power Sequencer for stable and protected operation
- Portable Plug-and-Play Design suitable for mobile entertainment systems
Summary

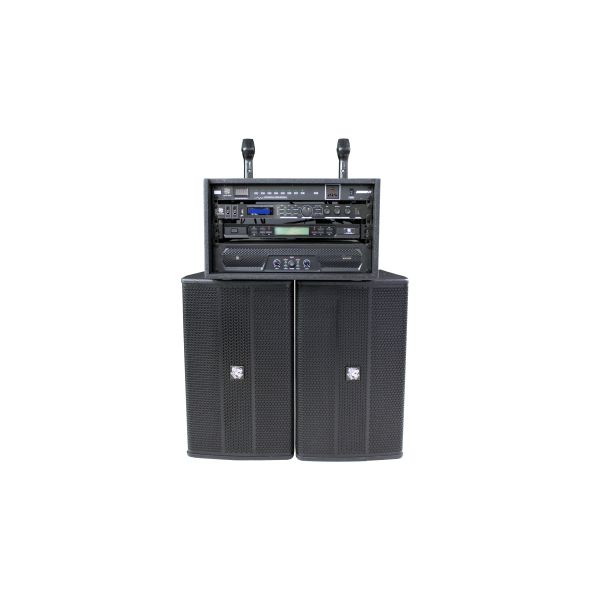

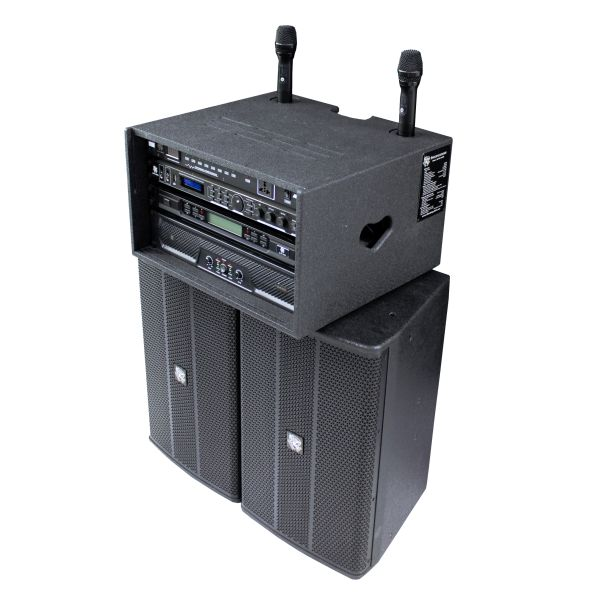

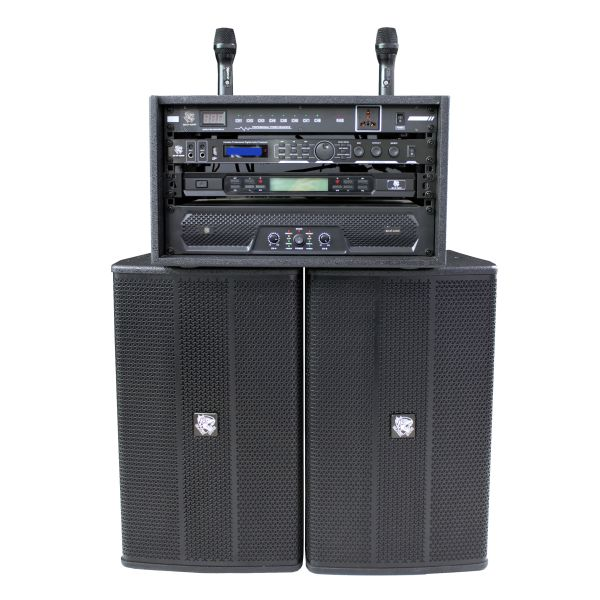

The Black Dog BD-Combo PA3 is a complete professional PA package designed for users who require powerful output, reliable wireless performance, and flexible audio control in a portable setup. Combining the BD-HF-A2000 amplifier, advanced DSP processing, dual wireless microphones, and high-efficiency 12″ loudspeakers, the PA3 delivers clean vocals, strong bass response, and dependable performance across a wide range of applications. Inspired by modern professional sound reinforcement system designs commonly used in live audio and portable PA environments, the BD-Combo PA3 offers a practical and powerful solution for entertainment, presentations, and event sound applications.
